Well today i traded my KWA M9 PTP for a KMP9R. i got it and i LOVE it. I have 1 problem though, i have some problems when it shoots.

Sometimes it shoots, sometimes it doesnt. If i recock it it shoots fine for 1-7 Shots.

I have 2 mags and it does it with both mags.

Stats:
FPS:350
Gas type:Green Gas
BBs:Elite Force .25g



So what do you guys/girls think is the problem? and how hard will it be to fix?

[gcw360]

You need to stretch part #162, the disconnector spring.  This will allow the bolt to return to battery.  You can stretch it with a flat screwdriver or needle nose pliers.  Just remember, you can't "unstretch" it so go slow and adjust as needed.

The approach I used when I encountered the problem was to take a flat screw driver, pick a point near the middle of the spring, insert the screwdriver between two coils of the spring, and give a little twist.  Using needle nose pliers will do the same thing if you insert the pliers in between the coils and squeeze.  I prefer the screw driver technique.  A stretch of about 1/8" should work.

[Bushhead97]

Ok thanks! Someone suggested my trigger spring may be broken?

[gcw360]

No, that isn't it. Not if it works sometime and others not.

[Bushhead97]

So that spring thing, any way you can get me a picture? Im a younder player(14) and im not the best tech, but not many gas gun tehs in GA :/

[Bushhead97]

Is it that spring you can see on the lower reciever? The one with the VERY tight coils?

[gcw360]

Look at the manual that came with the gun to find the part...that should help.  If I can find a picture I will post it.  It's not shown in the picture you posted.

[Bushhead97]

I traded the gun o.O i have no manual...

[gcw360]

Then look here: http://kwausa.com/fi...10_KMP9_V01.pdf

Hope that helps.

[Bushhead97]

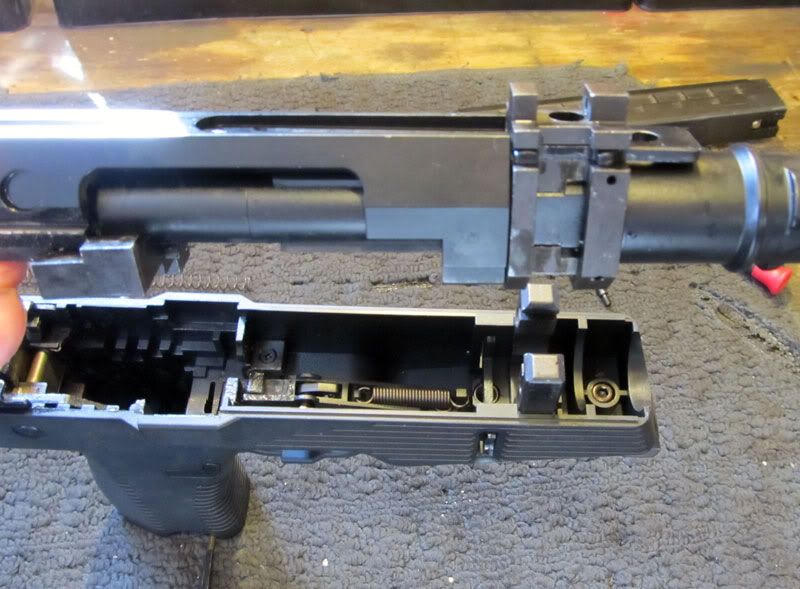

Kinda, buy i swear that spring in that picture is it...

[dobey]

The spring in that picture (which is my gun btw) is part number 73 and is not the one you need to stretch a little.  You want part number 162.

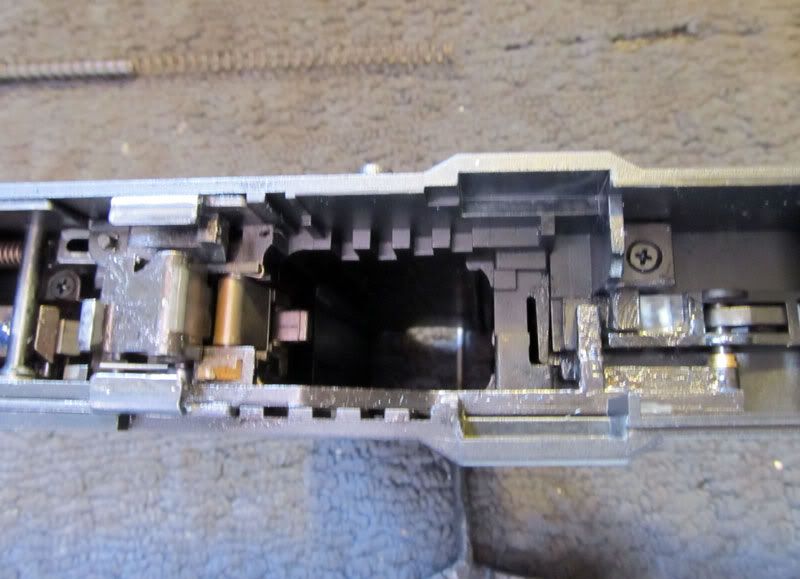

You can see it here just at the left side of the picture near that phillips head screw:

[gcw360]

Thanks Dobey.

[Snake8]

gcw360 can u make a video tutorial how to do it plz! I will appreciated it. Thank you

[niko_gpsy]

Yes, gcw360. Pleeeeaaaase?.........................................................    lol

[gcw360]

Sure, just need a video camera....

[greatwatermelon]

I sense a conflict in your next purchase...

KWA vs. Much needed Video Cam.

[gcw360]

Yea, it's killing me!

[apacifico3]

greatwatermelon, on 22 February 2012 - 06:35 PM, said:

I sense a conflict in your next purchase...

KWA vs. Much needed Video Cam.

Haha!

Bushhead97, on 20 February 2012 - 05:36 PM, said:

So that spring thing, any way you can get me a picture? Im a younder player(14) and im not the best tech, but not many gas gun tehs in GA :/

I tech and repair gas guns and AEGs and I live in GA. Whowouldathunk? Anyways, Dobey and GCW are right- the disconnector spring needs to be stretched a tad bit.

I'll post a vid when I get the chance.

Edited by apacifico3, 23 February 2012 - 02:42 AM.

[Bushhead97]

Thank you all for the help, i realized i dont even have to take the bolt out But ya, i loosened the spring and now the gun shoots AMAZING. I cant believe i didnt buy one of these before. Also, One of my mags the tip is farther off the metal casing than the other. Do i need a new tip?
